MSL03

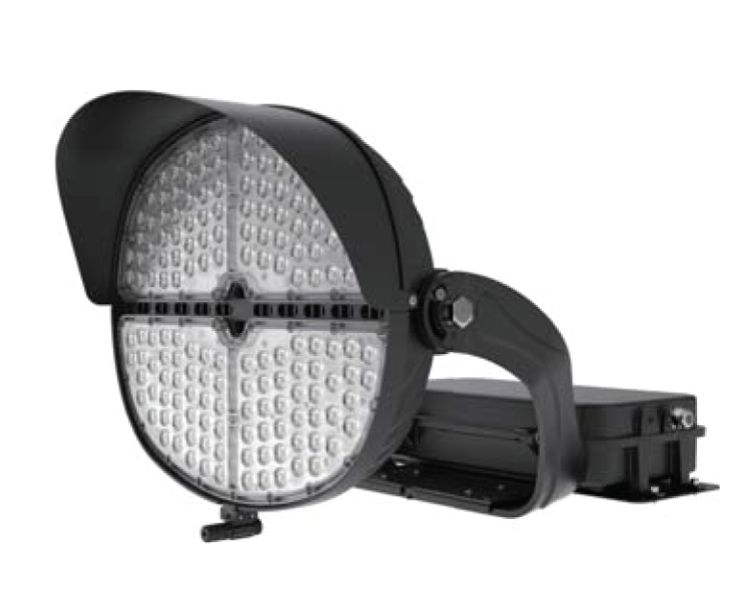

LEDalux - MSL03

MSL03 Description

The MSL03 series is a powerful stadium light designed with Remote Power System.This Remote Power System not only makes the fixture easy to install, greatly improves the flexibility of on-site installation, but also simplifies the driver maintenance operation steps to the greatest extent, eliminating the cost to take the bucket or crane basket equipment for maintenance. Precision engineered optics provide excellent high output and high efficiency, making them ideal solutions for municipal, school and semi-professional outdoor sports lighting.

MSL03 Benefits and Features

Construction
• Sealed die-casting profile for outdoor applications
• Low profile, compact design minimizes wind load requirements.
• Housing is completely sealed against moisture and environmental contaminants (IP65).

Optics
• Available in NEMA 2Hx2V, 3Hx3V, 4Hx4V,5Hx5V,6Hx6V distributions.
• Light engines are available in standard 4000K, 5000K and 5700 K (70/80/90 CRI) configurations.
• Scalable Lumen Packages from 70,000 to 165,000 Lumens.
• Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.

Electrical
• Ultra-wide input voltage: 200-480VAC or 120-277V or 347-480V.
• Standard with 0-10V dimming driver(s)
• Built in surge suppression with max 40KV.
• THD: ≤20%
• Power Factor: ≥90%
