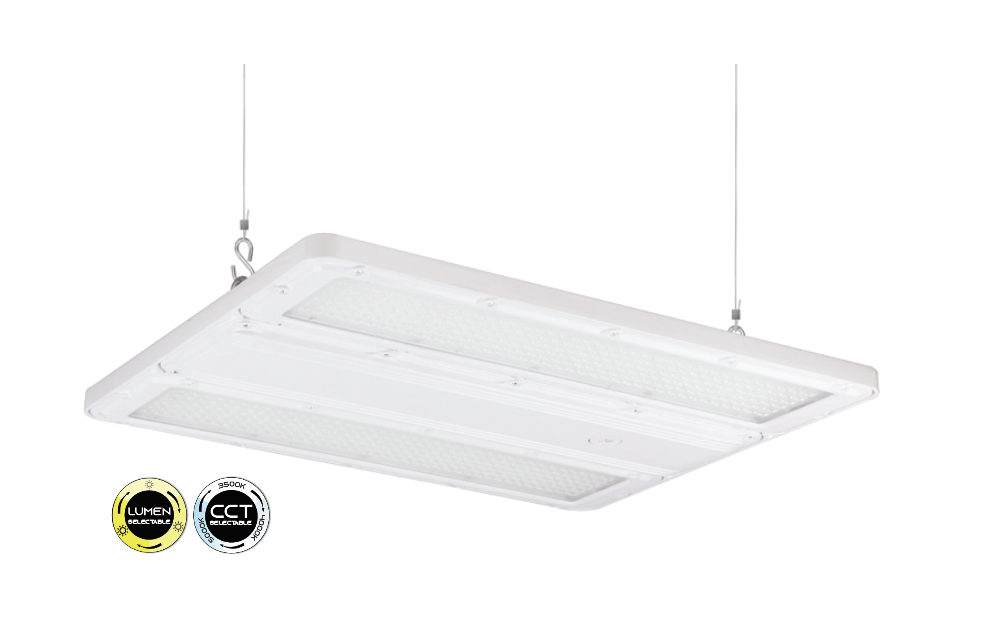

Stallion Series Description
Designed with a durable die-cast aluminum housing with an impact-resistant IK10 rated polycarbonate lens and a high operating temperature up to 65°C (149°F), this highbay is built to last. There are three power switchable configurations available, offering flexibility between 14,600 – 25,000 lumens (150W), 32,100-42,050 lumens (255W) and 33,600 – 49,000 lumens (300W), and CCT options between 3500K, 4000K, and 5000K.
Stallion Series Benefits and Features
Construction:
• Robust die-cast aluminum housing in a white finish
• IK10 Rated polycarbonate lens
• IK07 Rated glass lens accessory available
• Built in receptacle on the front panel for easy plug and play sensor
installation
• 6’ Three conductor whip for building power supply
• 6’ Four conductor whip for 0-10V dimming wires and emergency input
• Comes standard with 6’ aircraft mounting cable
Optics/LEDs:
• Polycarbonate lens (IK10 Rated) offered with an optical lens providing a
90° distribution
• Glass lens (IK07 Rated) accessory with an optical lens providing a 110°
distribution
• CCT Switchable between 3500K, 4000K and 5000K
• Power Switchable:
• 150W (14,600 – 25,000 lumens)
• 255W (32,100 – 42,050 lumens)
• 300W (33,600 – 49,000 lumens)
• Switches easily accessible on top of fixture under coin plug cover
• Efficacy up to 170lm/w
• CRI >80
