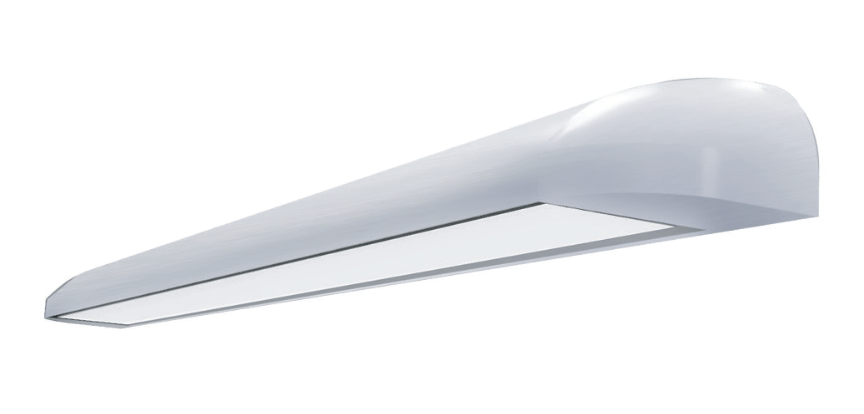

The THOR Series Architectural Linear LED Wallpack with Egress Option is a sleek low profile design for use above doorways. Available in lengths 20 – 102 inches to match a variety of doorways with static CCT between 2700K-5000K and lumen packages from 500 to 8,000 lumens, the THOR delivers soft, diffused illumination through a polycarbonate diffuser. An available emergency egress option (BB) offers 14 watts of battery backup for continued illumination during power outages.
Thoroughbred Series Description
The THOR Series Architectural Linear LED Wallpack with Egress Option is a sleek low profile design for use above doorways. Available in lengths 20 – 102 inches to match a variety of doorways with static CCT between 2700K-5000K and lumen packages from 500 to 8,000 lumens, the THOR delivers soft, diffused illumination through a polycarbonate diffuser. An available emergency egress option (BB) offers 14 watts of battery backup for continued illumination during power outages.
Thoroughbred Series Benefits and Features
Construction:
• Extruded aluminum enclosure with die-cast endcaps
• Durable TGIC polyester powder coating featuring a 5-stage pre-treatment for superior adhesion and corrosion protection
• Available in Black, Bronze, Silver and White
• Inset extruded aluminum doorframe secured with Torx stainless steel fasteners
Optics/LEDs:
• Lens is an extruded UV-stabilized opal polycarbonate with integral prisms
• Lumen packages from 500 to 8,000 lumens
• 2700K, 3000K, 3500K, 4000K, 5000K CCT
• CRI ≥ 82, optional 90 CRI (Option: 90)
• Efficacy up to 165 lumens per watt
• L70 > 130,000 hours
Electrical:
• Universal 120/277VAC, 50/60Hz
• 0-10V Dimming drive
